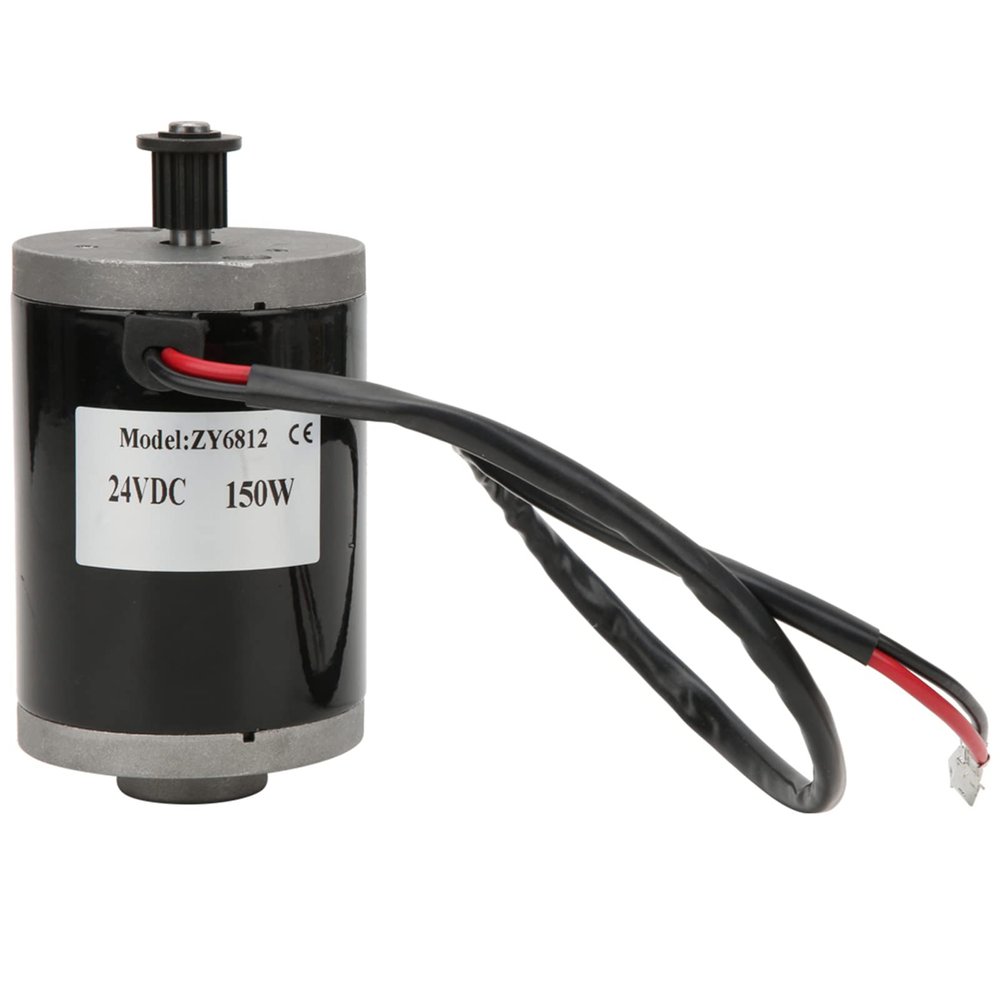

HEITIGN Propeller Electrique 60w 24v Electric Motor 1499 Zy6812 24v 150w Brush Electric Motor Chain Synchronizing Wheels Permanent Magnet Dc Chain Tooth

Description

• Made of high quality aluminium material, good performance, stable, long service time.
• With metal belt pulley, fine workmanship, sturdy and .
• Suitable for electric scooters, electric , etc.
• Motor length is 100mm, diameter is 68mm, shaft length is 28mm, shaft diameter is 8mm, 2 fixed hole spacing of motor is 36mm, sprocket is 25H type, 9 tooth sprocket.
• This product is small DC brush motor.

Spec:
Item type: DC Brush Motor
Model: ZY6812
Material: aluminium
Color: black
Weight: Approx. 1368g
Rated power: 150W (kW)
Rated voltage: 12 (V)
Rated speed: 3500 (rpm)
Main scope of application: electric scooter, electric bike
3C rated voltage range: below DC 36V
Rated current: Rated speed (rpm): 2500 5%
Maximum speed (rpm): 3500 5%
No-load current: Rated torque: 0.56 torque
Transmission: belt pulley, metal
Axial diameter: Approx. 8mm/0.3in(one side milling groove: Approx. 1mm/0.04in)
Efficiency: > 68%
Motor length: Approx.100 mm/ 3.9 inches
Motor diameter: Approx. 68 mm/ 2.7 in
Axial diameter: Approx. 8 mm/ 0.3 in
Motor fixed hole distance: Approx. 36mm/ 1.4in
Sprocket: 25H 9 teeth sprocket

packing list:
1 x Motor
